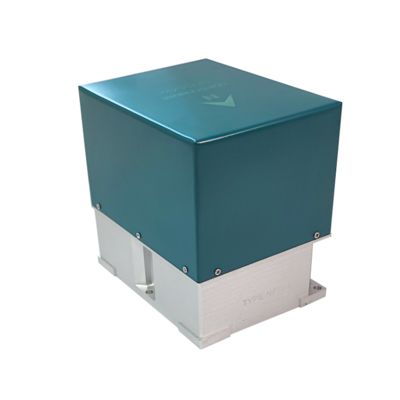

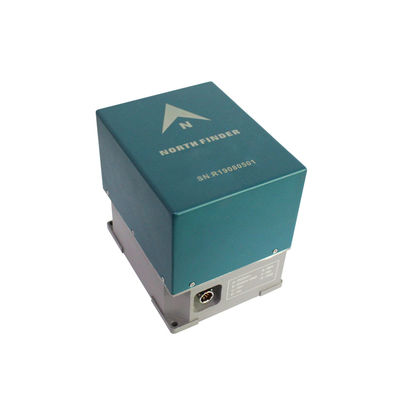

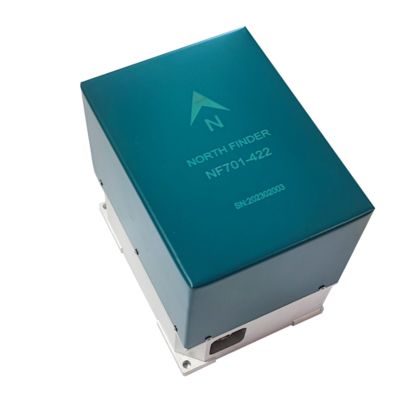

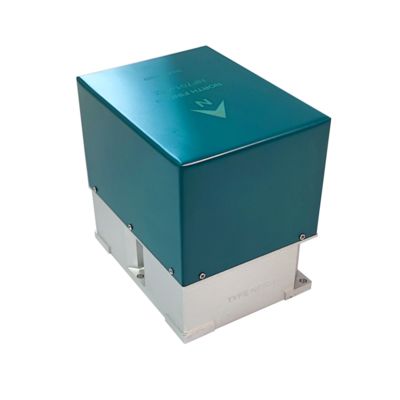

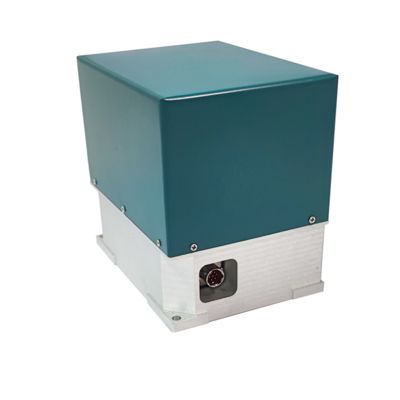

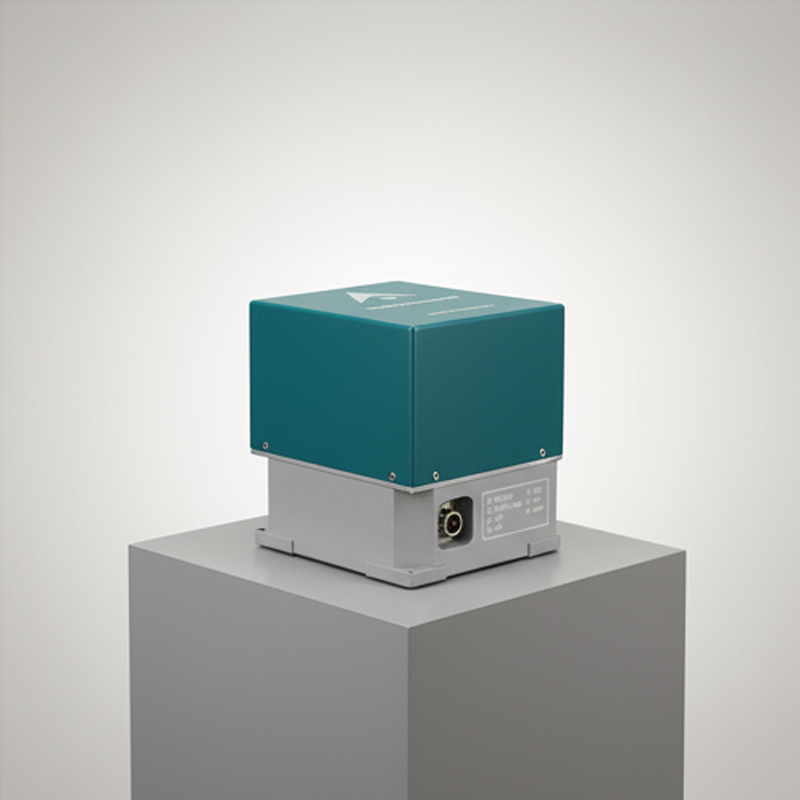

FNF703 North Seeker Fiber Optic Gyro for True North Determination

FNF703 North Seeker Fiber Optic Gyro for True North Determination

نام تجاری: 1
شماره مدل: NF701
مقدار تولیدی: 1
قیمت: 2000$
شرایط پرداخت: L/C ، D/P ، T/T ، Western Union
توانایی عرضه: 500/ماه
اطلاعات دقیق
محل منبع:
چین
نام محصول:
ژیروسکوپ فیبر نوری North Finder
North Seeking Acturacy (1σ):
0.3 درجه (NF701A) ؛ 0.5 درجه ° (NF701B)
دقت افقی:
° 0.05 ≤
دور:
0.5 درجه
رابط:
Rs422
منبع تغذیه:
DC 12V ~ 24V
وزن:
≤ 2 کیلوگرم
بعد:
110 × 90 × 110 میلی متر
جزئیات بسته بندی:
اسفنج + کارتن
قابلیت ارائه:
500/ماه
برجسته کردن:

FNF703 fiber optic gyro north finder,gyro north finder with true north determination,North Seeker fiber optic gyro

,

gyro north finder with true north determination

,

North Seeker fiber optic gyro

توضیح محصول
FNF703 North Seeker Fiber Optic Gyro for True North Determination
The Fiber Optic Gyroscope North Finder provides rapid, autonomous determination of true north using advanced FOG technology. It measures the Earth's rotation to deliver high-precision azimuth and attitude information for UAVs, autonomous vehicles, robotics, marine vessels, and GPS-denied navigation systems.
Featuring an all-solid-state design with no moving parts, it ensures high reliability, long operational life, and low maintenance. Its compact, lightweight, and low-power construction allows seamless integration into dynamic platforms while maintaining fast alignment, stable performance, and robust resistance to harsh environments.
Product Specifications
Attribute Value
Product Name fiber optic gyroscope north finder
North seeking accuracy (1σ) ≤ 0.3 ° (NF701A); ≤ 0.5 ° (NF701B)
Horizontal accuracy ≤ 0.05 °
Circumference ≤ 0.5 °
Interface RS422
Power supply DC 12V ~ 24V
Weight ≤ 2 kg
Dimension 115 * 90 * 110mm
Technical Features
  • Fast operation: North seeking time ≤ 3 minutes
  • High precision: North seeking accuracy ≤ 0.3° (NF701A model)
  • Stable performance: Horizontal accuracy ≤ 0.05°
  • Compact design: Weighs ≤ 2 kg with dimensions of 115 * 90 * 110mm
  • Versatile power: Operates on DC 12V ~ 24V with peak consumption of 15W
  • Reliable interface: RS422 communication protocol
  • Automated operation: Self-check upon power-on with upper computer control
Environmental Specifications
  • Operating temperature: -40℃ to +70℃
  • Storage temperature: -55℃ to +85℃
  • Humidity resistance: Operates in relative humidity < 95%
  • Durable construction: Rust-free metal surfaces with intact coatings
Product Diagram
FNF703 North Seeker Fiber Optic Gyro for True North Determination 0
Fiber optic gyroscope north finder
FNF703 North Seeker Fiber Optic Gyro for True North Determination 1
Technical diagram showing dimensions and components
