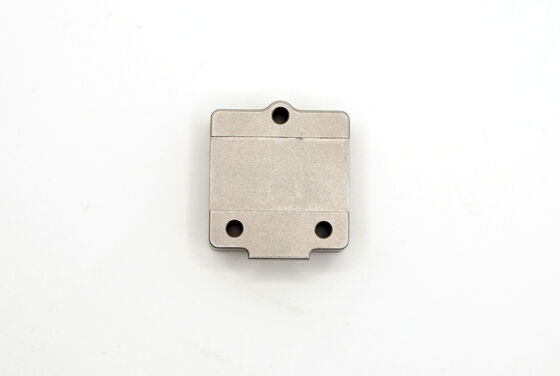

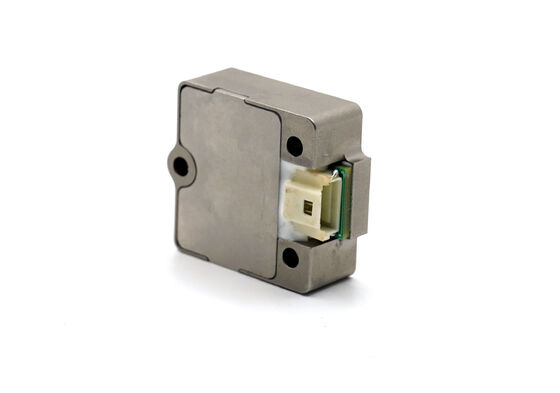

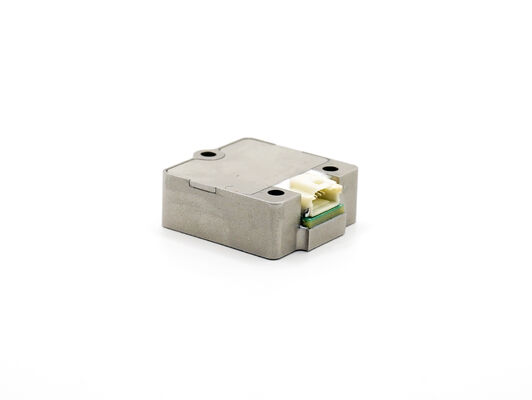

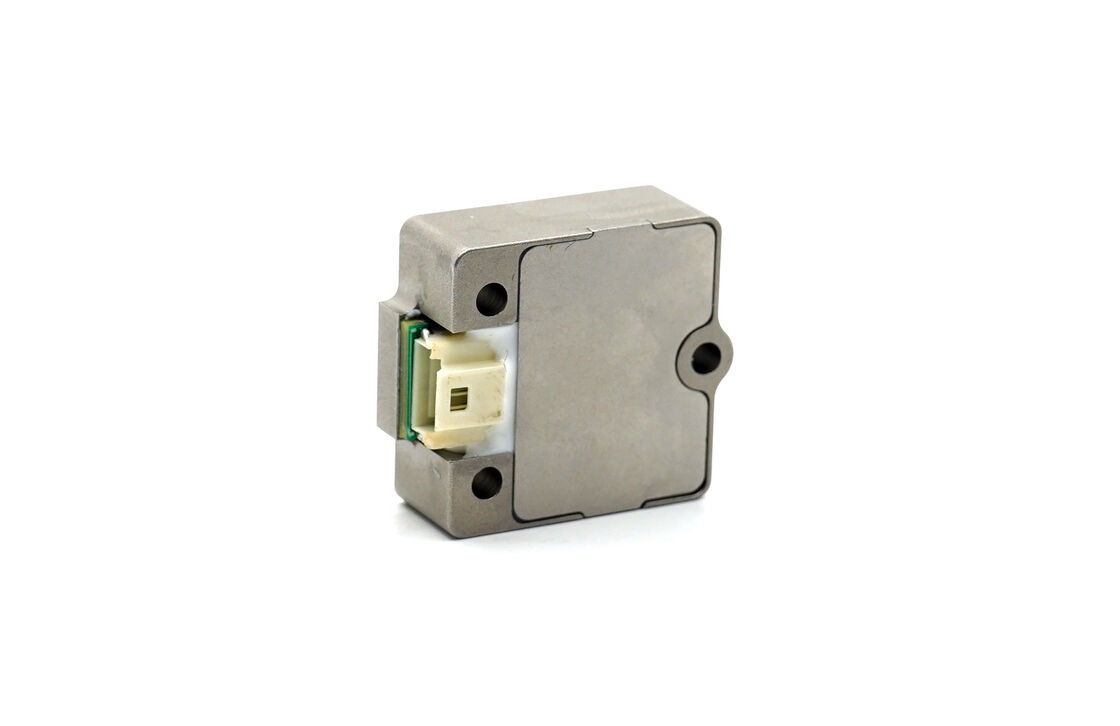

High-Performance Inertial Measurement Unit for Inertial Navigation System INS

نام تجاری:	FIREPOWER
شماره مدل:	IMU6-36
مقدار تولیدی:	1
شرایط پرداخت:	L/C، T/T
توانایی عرضه:	500/ماه

اطلاعات دقیق

توضیح محصول

اطلاعات دقیق

محل منبع:

چین

عدم ثبات بی طرفی صفر:

3 درجه/ساعت

محدوده اندازه گیری:

480 درجه بر ثانیه

زاویه راه رفتن تصادفی:

0.25 درجه/√ ساعت

محدوده اندازه گیری (شتاب سنج):

قابل تنظیم 2 ~ 16 گرم

تکرارپذیری سوگیری صفر:

≤5 درجه در ساعت

پهنای باند:

≥100 هرتز

وزن:

18 گرم

ولتاژ:

5±0.3 ولت

جزئیات بسته بندی:

اسفنج + کارتن

قابلیت ارائه:

500/ماه

برجسته کردن:

Inertial Measurement Unit for navigation,High-performance INS accelerometer,Gyro sensor for inertial systems

High-performance INS accelerometer

Gyro sensor for inertial systems

توضیح محصول

High-Performance Inertial Measurement Unit for Inertial Navigation System INS

Composition and Function
The inertial measurement unit consists of a three-axis gyroscope, three-axis accelerometer, temperature sensor, signal processing board, structural components, and essential software. It measures the three-axis angular rate and acceleration of the carrier, outputting compensated data including temperature compensation, installation misalignment angle compensation, and nonlinear compensation through the UART serial port using the specified communication protocol.

Gyroscope Technical Specifications

Parameter	Unit	Test Conditions	IMU6-36
Measuring range	°/s	Configurable	±480
Zero-bias instability	°/h	Allan variance	≤3
Zero bias stability	°/h	10s smooth, RMS, normal temperature	≤8
Zero bias variation at full temperature	°/h	10 s smoothing, three-temperature zero-bias variation (-45 ℃, 25 ℃, 85 ℃)	≤150
Random walk	°/√h	Allan variance	≤0.25
Zero-bias repeatability	°/h	Q = 6, normal temperature	≤5
Scale factor nonlinearity	ppm	Normal temperature	≤50
Cross coupling	%	Normal temperature	≤0.1
Bandwidth	Hz	Configurable	≥100

Accelerometer Technical Specifications

Parameter	Unit	Test Conditions	IMU6-36
Measuring range	g	Configurable 2 ~ 16g	±16
Zero bias stability	mg	10s smooth, RMS, normal temperature	≤0.1
Zero bias variation at full temperature	mg	10 s smoothing, three-temperature zero-bias variation (-45 ℃, 25 ℃, 85 ℃)	≤2.5
Zero-bias repeatability	mg	Q = 6, normal temperature	≤0.1
Scale factor nonlinearity	ppm	Normal temperature, ± 1 g	≤200
Cross coupling	%	Normal temperature	≤0.1
Bandwidth	Hz	Configurable	≥100
