| نام تجاری: | Firepower |
| شماره مدل: | FPD24005-66 |
| مقدار تولیدی: | 1 |
| قیمت: | قابل مذاکره |
| شرایط پرداخت: | L/C ، T/T |
| توانایی عرضه: | 500/ماه |

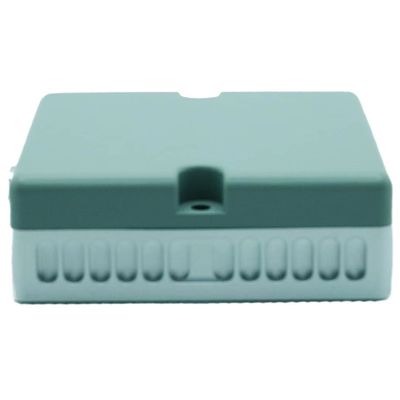

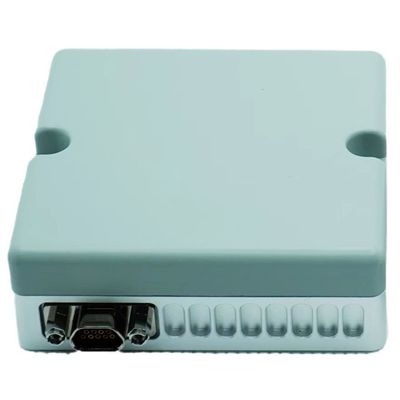

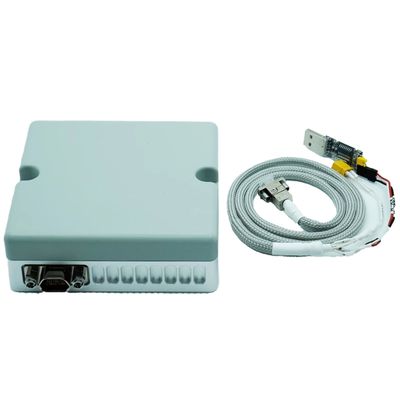

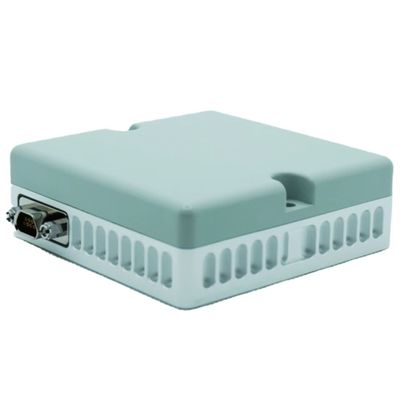

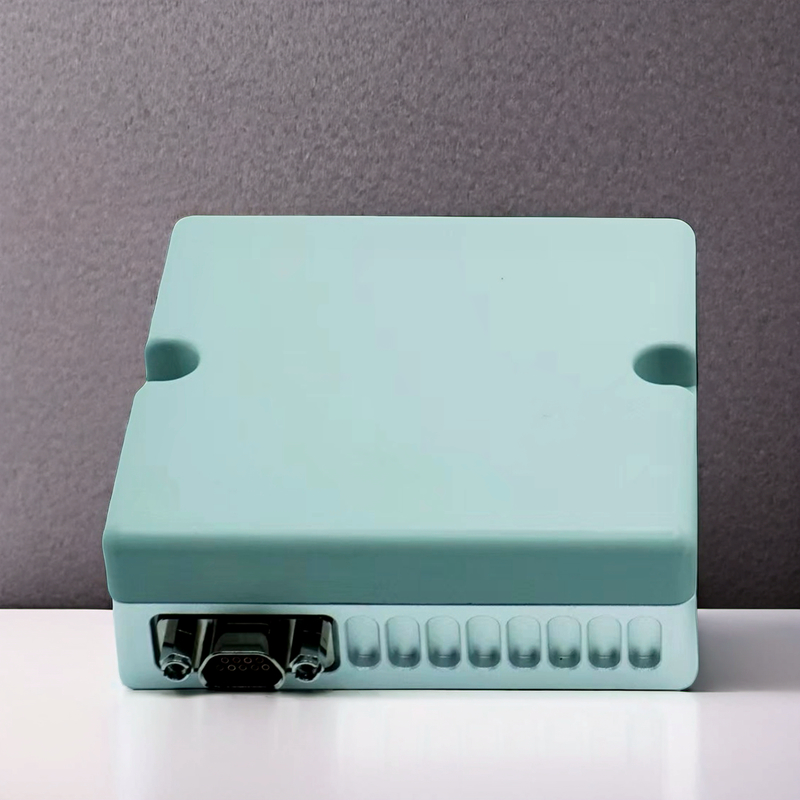

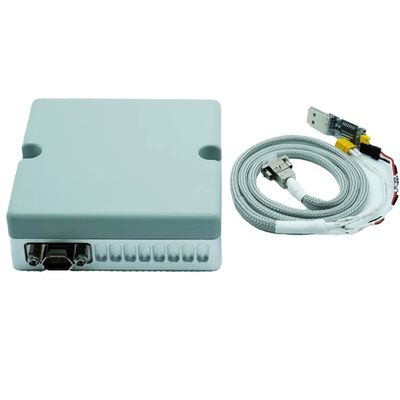

Model: FPD24005-66-GNSS-12V. This advanced anti-jamming antenna protects platforms from both unintentional interference and malicious attacks, significantly enhancing PNT (Positioning, Navigation, and Timing) information security.
| Pin No. | Definition | Remark |
|---|---|---|
| 1/2 | VCC12V | Power supply 12V |
| 3/4 | GND | Power supply 12V |
| 5 | UART_TXD1 | Upgrade serial port, TTL level |
| 6 | UART_RXD1 | Upgrade serial port, TTL level |
| 7 | UART_DGND | Ground |
| 8 | UART_TXD2 | Serial port of positioning module, TTL level |
| 9 | UART_RXD2 | Serial port of positioning module, TTL level |
