Airborne Fiber Optic Gyroscope System VG910 Sensor for Gimbal Stabilization

Airborne Fiber Optic Gyroscope System VG910 Sensor for Gimbal Stabilization

نام تجاری: Firepower
شماره مدل: MFOG-910
مقدار تولیدی: 1
قیمت: 1000$
شرایط پرداخت: L/C ، D/P ، T/T ، Western Union
توانایی عرضه: 500/ماه
اطلاعات دقیق
محل منبع:
چین
دامنه:
± 240 درجه در ثانیه
ثبات تعصب صفر ((10s ، 1σ):
≤0.8°/h
پیاده روی تصادفی زاویه ای:
0.02 درجه در ساعت
پهنای باند 3DB:
≥1000 هرتز
تکرارپذیری صفر-تعصب ((1σ):
≤0.8°/h
فاکتور مقیاس غیرخطی:
≤1000ppm
وزن:
≤150 گرم
مصرف برق:
≤1.5w
جزئیات بسته بندی:
اسفنج + کارتن
قابلیت ارائه:
500/ماه
برجسته کردن:

fiber optic gyroscope gimbal stabilization,VG910 gyro sensor system,airborne fiber optic gyro

,

VG910 gyro sensor system

,

airborne fiber optic gyro

توضیح محصول
Airborne Fiber Optic Gyroscope System VG910 Sensor for Gimbal Stabilization
Fizoptika VG910 Copy Fiber Optic Gyroscope ±240°/s Range ≤0.8°/h Stability
Airborne Fiber Optic Gyroscope System VG910 Sensor  for Gimbal Stabilization 0
Key Specifications
Attribute Value
Range ±240°/s
Zero-bias stability (10s, 1σ) ≤0.8°/h
Angular random walk ≤0.02°/h
3dB Bandwidth ≥1000Hz
Zero-bias repeatability (1σ) ≤0.8°/h
Scale factor nonlinearity ≤1000ppm
Weight ≤150g
Power Consumption ≤1.5W
Product Overview
The MFOG-910 Micro-Nano Fiber Optic Gyroscope is a compact, high-precision angular rate sensor based on the Sagnac effect. It features an all-solid-state design with temperature compensation, ensuring high reliability, fast startup, and a long service life of over 15 years. With excellent shock (≥1500g) and vibration (≥70g) resistance, as well as low power consumption (≤1.5W) and lightweight construction (≤150g), it is ideal for precise attitude control and inertial navigation in dynamic platforms.
Detailed Performance Parameters
Parameter Specification
Range (°/s) ±240
Scale factor (mV/°/s) 47±5
Scale factor nonlinearity (ppm) ≤1000
Zero-bias stability (10s, 1σ, °/H) ≤0.8
Zero-bias repeatability (1σ, °/H) ≤0.8
3dB Bandwidth (Hz) ≥1000
Random walk (°/√H) ≤0.02
Power supply (V) 5+0.25+12
Power Consumption (W) ≤1.5
Impact (g) ≥1500
Acceleration (g) ≥70
Life (years) ≥15
MTBF (Calculated Assessment) ≥100000
Product Diagrams
Airborne Fiber Optic Gyroscope System VG910 Sensor  for Gimbal Stabilization 1

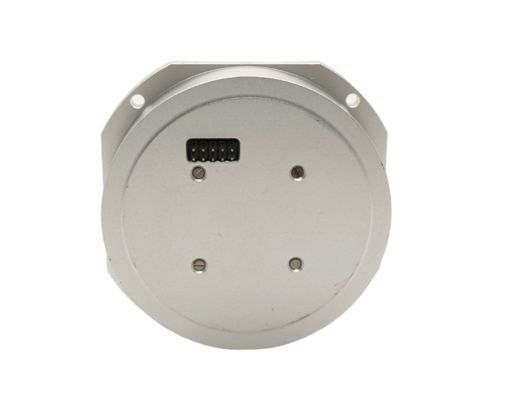

Front View Diagram
Airborne Fiber Optic Gyroscope System VG910 Sensor  for Gimbal Stabilization 2

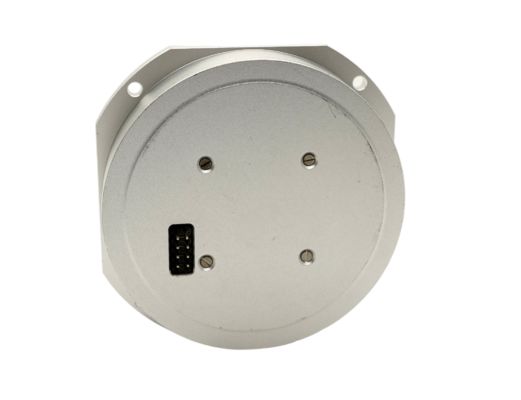

Side View Diagram
