Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor

Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor

نام تجاری: Firepower
شماره مدل: MFOG-910
مقدار تولیدی: 1
قیمت: 1000$
شرایط پرداخت: L/C ، D/P ، T/T ، Western Union
توانایی عرضه: 500/ماه
اطلاعات دقیق
محل منبع:
چین
دامنه:
± 240 درجه در ثانیه
ثبات تعصب صفر ((10s ، 1σ):
≤0.8°/h
راه رفتن تصادفی زاویه ای:
≤0.02 درجه در ساعت
پهنای باند 3DB:
≥1000 هرتز
تکرارپذیری صفر-تعصب ((1σ):
≤0.8°/h
غیر خطی بودن ضریب مقیاس:
≤1000ppm
وزن:
≤150 گرم
مصرف برق:
≤1.5 وات
جزئیات بسته بندی:
اسفنج + کارتن
قابلیت ارائه:
500/ماه
برجسته کردن:

Fizoptika VG910 fiber optic gyroscope,open-loop angular rate sensor,fiber optic gyro with warranty

,

open-loop angular rate sensor

,

fiber optic gyro with warranty

توضیح محصول
Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor
Key Specifications
Attribute Value
Range ±240°/s
Zero-bias stability (10s, 1σ) ≤0.8°/h
Angular random walk ≤0.02°/h
3dB Bandwidth ≥1000Hz
Zero-bias repeatability (1σ) ≤0.8°/h
Scale factor nonlinearity ≤1000ppm
Weight ≤150g
Power Consumption ≤1.5W
Product Overview

The MFOG-910 is a compact, lightweight, and robust fiber optic gyroscope designed as a replacement for the Fizoptika VG910. Utilizing the Sagnac effect, it precisely measures angular velocity through a micro-nano fiber coil with no moving or wearing parts, ensuring fast startup, long operational life, and high resistance to shock and vibration.

Ideal for UAV, autonomous navigation, robotics, aerospace, and industrial automation, the MFOG-910 delivers high-precision attitude control and inertial measurement with low power consumption and stable performance in demanding environments.

Performance Parameters
Serial Number Project Performance Indicators
1 Range (°/s) ±240
2 Scale factor (mV/°/s) 47±5
3 Scale factor nonlinearity (ppm) ≤1000
4 Zero-bias stability (10s, 1σ, °/H) ≤0.8
5 Zero-bias repeatability (1σ, °/H) ≤0.8
6 3dB Bandwidth (Hz) ≥1000
7 Random walk (°/√H) ≤0.02
8 Power supply (V) 5+0.25+12
9 Power Consumption (W) ≤1.5
10 Impact (g) ≥1500
11 Acceleration (g) ≥70
12 Life (years) (calculated assessment) ≥15
13 MTBF (Calculated Assessment) ≥100000
Product Diagrams

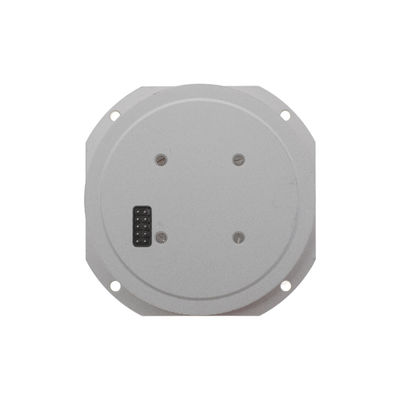

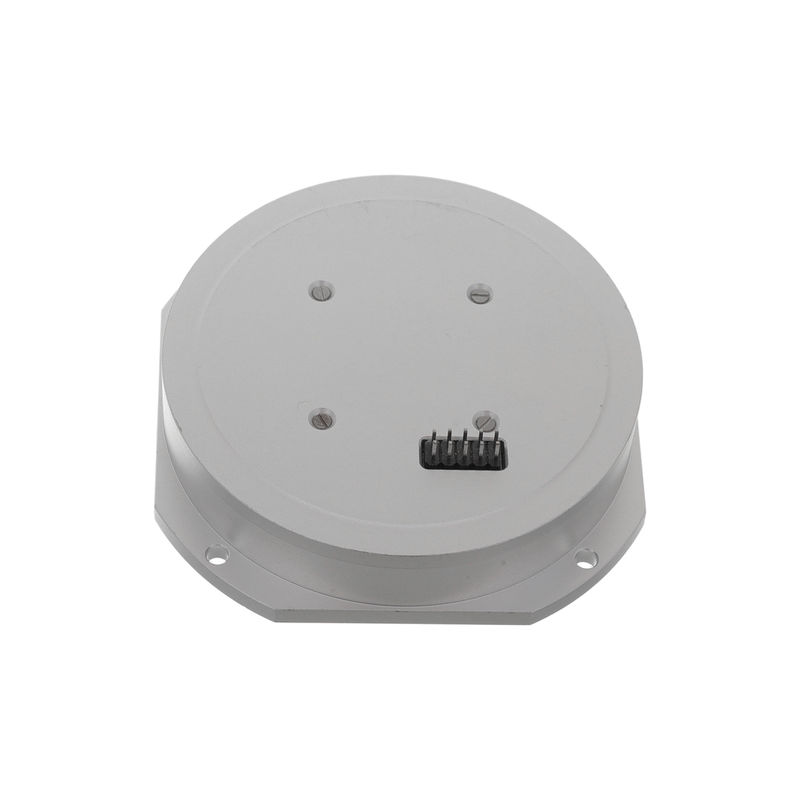

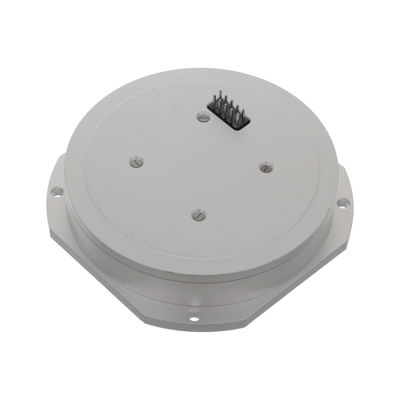

Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor 0 Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor 1
